Evershine Enterprises Products Catalogue

Evershine Enterprises Coupler Fittings

We excel in providing our customers with high quality Coupler Fittings, which are manufactured following world class standards. These are appreciated by our clients across the globe because of its superior performance and long service life. Further, we offer coupler fittings in various dimensions, so that we can cater to the specific requirements of our clients.


Evershine EnterPrieses Coupler FittingsEvershine Enterprises Pressed Double Coupler
Pressed Double Coupler is used to connect two scaffolds at right angles. These critical components reinforce scaffold structure and can bear heavy load to disallow slip & distortion of the structure. The design is supported by a strong one piece body with T-bolts and flaps that can be easily removed for replacement or maintenance.

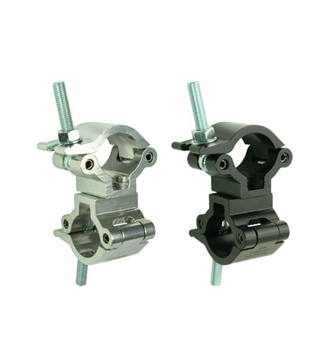

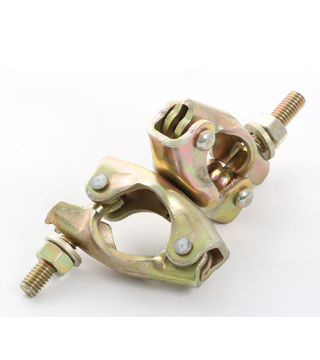

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Pressed Swivel Coupler
We offer our clients Pressed Swivel Couplers that join two scaffold tubes at any angle to provide a ledger brace, faced or similar bracing. Mild steel is used in manufacturing the swivel couplers to add to their strength and durability. Further, these are fine in finish, corrosion resistant and are designed as per prevailing quality standards. Additionally, this Pressed Swivel Coupler is also used as ledgers or props for diagonal bracings.


Evershine EnterPrieses Coupler FittingsEvershine Enterprises Leight Weight Double Coupler
Maine Light Weight Double Coupler is used to connect scaffold tubes at right angle to each other. These right angled couplers are used for 40 X 40 mm N. B. Pipes and 40 X 50 mm. N.B pipes.

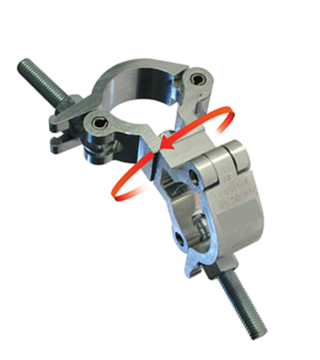

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Light Weight Swivel Coupler
We bring in for our clients Light Weight Swivel Coupler that are used for connecting two scaffold tubes at any angle to provide a ledger brace, faced, or similar bracing. These Swivel Coupler offered by us is available in varied dimensions as per the needs of the clients and is easy to handle. These enable two tubes to be connected together at any angle and are used in cross bracing and are widely used for clamping scaffold tubes in any angle.
Features

  • High durability
  • Easy to install
  • Low maintenance cost
  • Easy to handle
  • Easy mobility

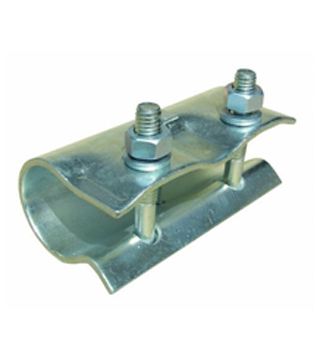

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Sleeve Coupler
Sleeve Couplers are used to connect two scaffold tubes at both the external ends. A steel divider positioned centrally enables equal in fixing of each tube. They can be introduced where the tension joints are required and therefore are particularly used with ledger tubes and long bracing.

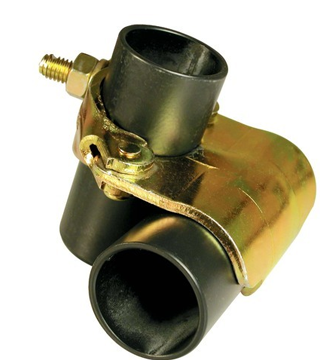

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Putlog PVC Moulds Coupler
The coupler connects putlog or transom tubes with the ledger tubes to the support of scaffold boards. The melded one piece body has been press-formed and designed to render the maximum resistance to movement. The Putlog Coupler has a long working life.

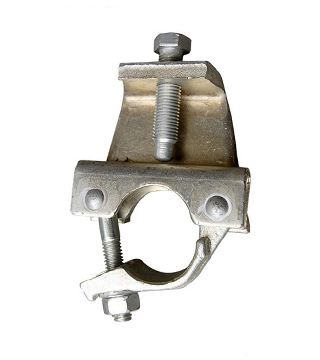

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Girder Coupler
The Girder Coupler is used to connect scaffold tubes to girders and other steel sections which demand a specialized fitting with a high degree of performance. The Gravlock Girder Coupler has been especially designed to fasten either horizontal or vertical flanges, and can accommodate up to 43mm (1 ¾').


Gravlock Coupler can be effectively used for erection; it allows the fitting to be bolted to the girder first, and leave both hands free to present and lock the tube. The fittings are made only for the compression joints, and it should not be used where tension can develop in the tubes.

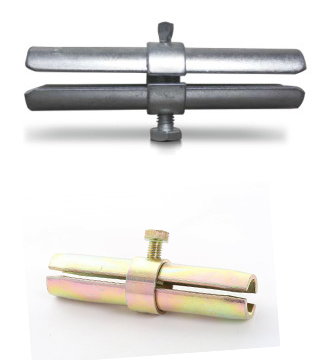

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Joint Pin
Provides end to end connection of scaffold tubes. Operates by being inserted internally and expands to apply grip against the inner walls of the tubes. The fittings are designed only for compression joints, and should not be used where tension can be developed in the tubes.

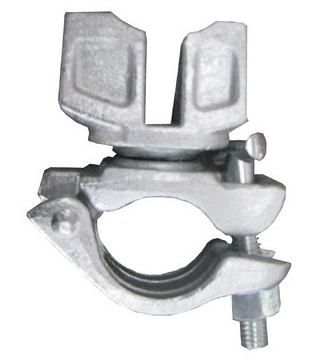

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Putlog Head Adopter
Avail from us Putlog head adopter that is used to modify a scaffold tube into a putlog, ensuring the maximum use of short lengths of tube. These are widely known for its long life and durability. These are forged, pressed and machined steel components finding usage in Automotive, Railways, Bearing, Heavy Fabrication, Scaffolding, form work and construction industry. It helps in converting 48.4mm scaffold tube into putlog for insertion into brickwork joints. It is as per BS1139 part 2 1982 – SWL to BS5973 standards.

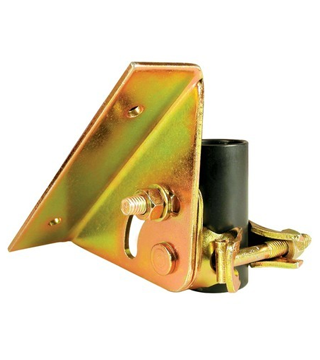

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Stair Case Coupler
The stair case coupler is used for the construction of make-shift. stairways by connecting together scaffold tubes and timbers (oft.en scaffold boards) in angles varying from 28° to 90°. These units can be used in either left. of right hand combination.
Sizes Available:

  • Cuplock Inside Board Transom 0.565 mm. (2 Board)
  • Cuplock Inside Board Transom 0.795 mm (3 Board)

Evershine Enterprises Cuplock System

We offer a wide variety of Cuplock System that can be manufactured according to client’s requirements. Known for high quality and superior performance standards, these are available in various dimensions as per clients given specifications. We offer this Cuplock System in a wide range of sizes, shapes and models at highly competitive prices.

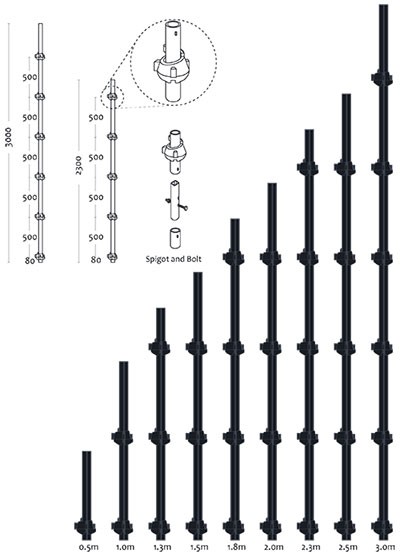

Evershine EnterPrieses Coupler FittingsEvershine Enterprises Cuplock Standard or Vertical
Cuplock spotted standard/vertical is basically used in get in scaffolding work and also act as a base structure for Formwork strengthening applications. The cup joints are at every 500mm intervals. The inbuilt movable top cups are made for rough site handling. The welded bottom cups are made from high grade steel. Integral spigots are 150mm long and are provided at the top of each standard for making upright connections. The base and the spigots of every standard have 16mm diameter holes which enables use of locking pins to secure the standards wherever necessary.
Sizes Available: Scaffolding Cuplock Standard 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m

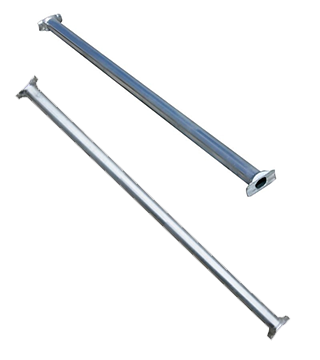

Evershine Enterprises Ledger / Horizontal CuplockEvershine Enterprises Ledger / Horizontal Cuplock
The ledger/horizontal are produced using the 48.3mm O.D. tube, it has forged steel blade ends which fitted into the bottom cups of the standards and are secured in place by the corresponding top cups. They are available in varied lengths to enable desired grid shapes for the scaffolding/Formwork.
Sizes Available: Cuplok Ledger 0.6m, 0.9m, 1.2m, 1.25m, 1.3m, 1.5m, 1.6m, 1.8m, 2m, 2.5m


Evershine Enterprises Cuplock TransomEvershine Enterprises Cuplock Transom
The Cuplock transom is produced using conjoint twin structural angles fixed together and have a drop forged blade attached to each end. The 2.44m cuplock transom incorporates additional web member welded below the flange section for increased strength. The forged blades of the transom are fitted into the bottom cup and are secured using the top cup. The outside standing bottom leg angles sustain the steel planks in confined manner. The Cuplock transom is available in various lengths to suit scaffolding and Formwork applications.
Sizes Available: Cuplok Transom 0.31m, 0.61m, 0.83m, 1.05m, 1.27m, 1.83m, 2.44m

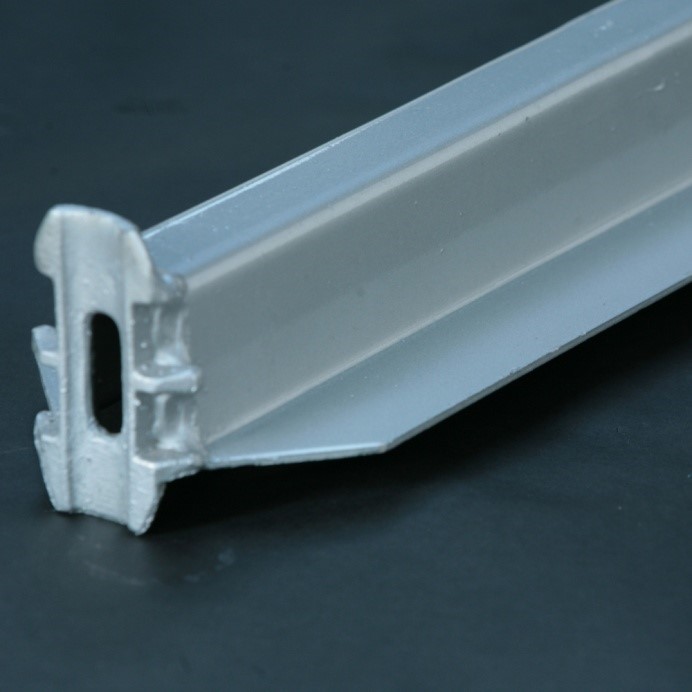

Evershine Enterprises Cuplock Omega Transom
The Cuplock Omega Transoms are manufactured from press bent section with flange type extensions on either side provides a reinforced back up to working platform with cuplock steel battens.
Sizes Available: Cuplok Omega Transom 0.9 M, 1.3 M, 1.8 M, 2.5 M

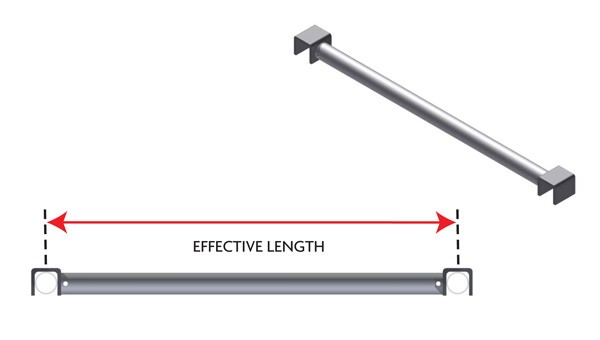

Evershine Enterprises Cuplock Intermediate TransomEvershine Enterprises Cuplock Intermediate Transom
These Cuplock intermediate transoms are used with Hop-up brackets. They are useful to make up for the distance between standards if it exceeds the span of scaffold boards. Cuplock intermediate transoms are used to secure the 2 board and 3 boards.
Sizes Available: Cuplock Intermediate Transom 0.565 mm (2 Board), 0.795 mm (3 Board)

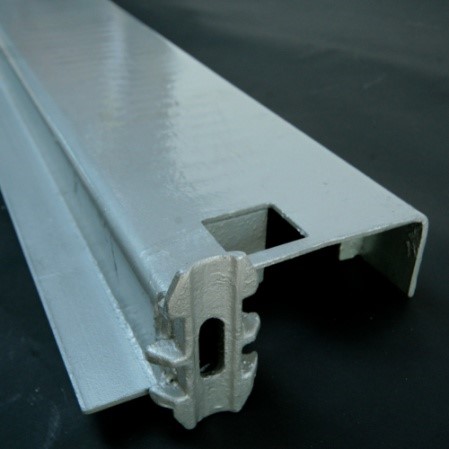

Evershine Enterprises Cuplock Return TransomEvershine Enterprises Cuplock Return Transom
The Cuplock Return Transom is used at the end of a scaffold run where it meets another scaffold running at right angles to it. The U-shaped return section of the transom hooks over the ledger of the adjacent scaffold, to close the gap between the two scaffolds.
Sizes Available: Cuplok Return Transom 1.3m

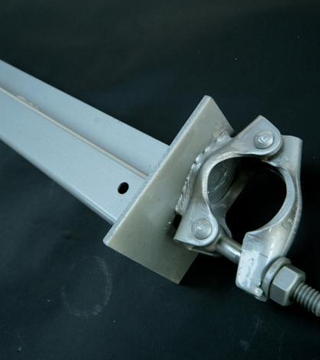

Evershine Enterprises Ladder Access TransomEvershine Enterprises Ladder Access Transom
The Ladder Access Transom can provide a gap in a bay to allow a ladder to pass through it. The Ladder Access Transom is connected to and spans between the ledgers in the bay.
Sizes Available: Cuplok Ladder Access Transom 1.05m, 1.27m, 1.83m, 2.44m

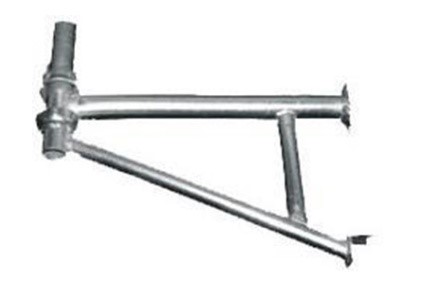

Evershine Enterprises Hop-Up 1/2/3 BracketEvershine Enterprises Hop-Up 1/2/3 Bracket
The hop-up brackets allow the 1, 2 or 3 plank broad platforms to be placed between the workplace and the scaffold. The blade end is fitted into the cup on the standard and the ends of the brackets are connected to each other with the help of Tie Bars.
Sizes Available: Cuplok Platform Bracket - 1 Plank, 2 Plank, 3 Plank

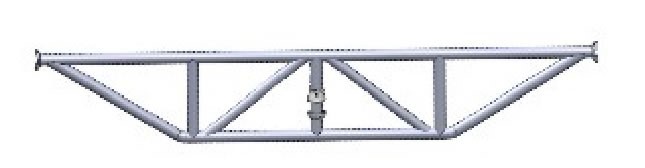

Evershine Enterprises Cuplock Scaffolding Bridging HorizontalsEvershine Enterprises Cuplock Scaffolding Bridging Horizontals
The Cuplock Scaffolding bridging horizontals provide complete working platform with necessary guardrails for safe vehicle passage.
Sizes Available: Cuplock Bridging Horizontals 5.0M, 7.5M

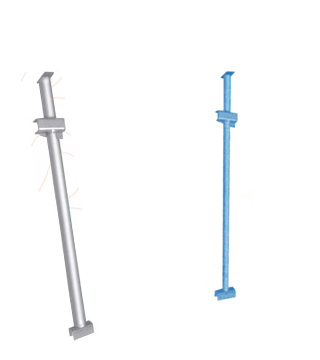

Evershine Enterprises Cuplock Inside Board TransomEvershine Enterprises Cuplock Inside Board Transom
The Cuplock inside board transom can be used with Hop-up brackets to cover the distance between standards if it exceeds the span of scaffold boards. The range of Quicklock intermediate transoms is available for 2 board and 3 boards.
Sizes Available: Cuplock Inside Board Transom 0.565 mm (2 Board), 0.795 mm (3 Board)


Evershine Enterprises Fixed U-Head & Beam BracketsEvershine Enterprises Fixed U-Head & Beam Brackets
The brackets have a solid stem of 35mm specified diameter with a nut restraint to guarantee the stem always has a least engagement into the standard of 150mm. The U-Head is capable of supporting twin 100mm wide bears.



Evershine Enterprises Cuplock BracingEvershine Enterprises Cuplock Bracing
The Cuplock Bracing is used for diagonal bracing of scaffolding. A diverse range of longitudinal braces made out of 20 mm N. B. 'L' tubes with swivel forged blades at each ends to be fitted into cups of Quiklok standards are available.
Sizes Available: Cuplock Bracing 2.50M X 2.00M, 2.50M X 1.50M, 1.80M X 2.00M, 1.80M X 1.50M

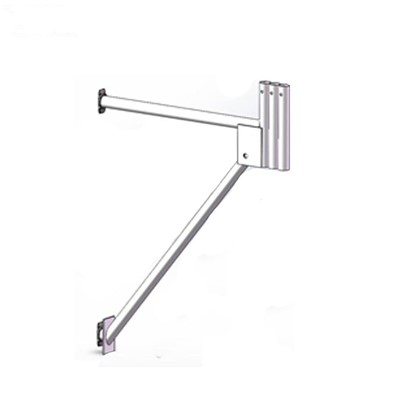

Evershine Enterprises Cuplock Cantilever FrameEvershine Enterprises Cuplock Cantilever Frame
The Cuplock Cantilever Frame is used for providing support to the platform or Formwork at edges. This frame has ledger blades to be fitted into cups of Quiklok standards at one end and with provision for positioning jacks in three positions at the other end at 1.2 m, 1.25 m and 1.3 m from centreline of the standard.
Sizes Available: Cuplock Cantilever Frame 1.0 M, 1.5 M


Evershine Enterprises Cuplock Cantilever FrameEvershine Enterprises Cuplock Cantilever Frame
The Cuplock Cantilever Frame is used for providing support to the platform or Formwork at edges. This frame has ledger blades to be fitted into cups of Quiklok standards at one end and with provision for positioning jacks in three positions at the other end at 1.2 m, 1.25 m and 1.3 m from centreline of the standard.
Sizes Available: Cuplock Cantilever Frame 1.0 M, 1.5 M

Evershine Enterprises Props and Fork

Providing you the best range of Adjustable Steel Props, push, crib frames / Heavy duty trestle frames, Turnbuckle, Tripod stand and Forkhead with Effective and Timely Delivery.


Evershine EnterPrieses Coupler FittingsEvershine Enterprises Adjustable Steel Props
Evershine Enterprises Telescopic adjustable steel props are ergonomically made to hold up a spectrum of temporary beams and floors. Evershine Enterprises Props Is produced from an outer tube 60.3mm Dia and an inner tube of 48.3mm Dia. The inner comes with option of base plate/ flat tops /U heads/ Beam Heads. The props are available in single piece as well as welded Heavy duty sleeve. They are available with different options of nuts,handle & lock. The Evershine Enterprises PROP are available in Light, Medium & Heavy options. various models are available like European type & Indian type. Adjustable Steel Props are produced in following sizes No.0 to No. 4

SizeClosed(m)Open(m)
Prop No.01.041.83
Prop No.11.041.83
Prop No.21.041.83
Prop No.31.041.83
Prop No.41.041.83
*Customised sizes & CT models are also available.

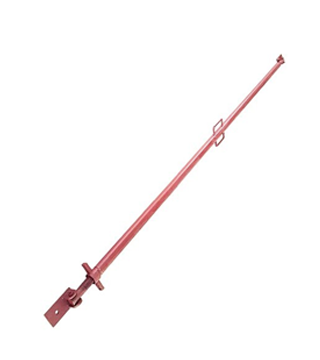

Evershine Enterprises TurnbuckleEvershine Enterprises TurnbuckleEvershine Enterprises Turnbuckle
We manufacture heavy duty turnbuckles. They are made from HD tubes and left. hand side and right hand side thread adjustments with tilt up attachments. They are available in various sizes.

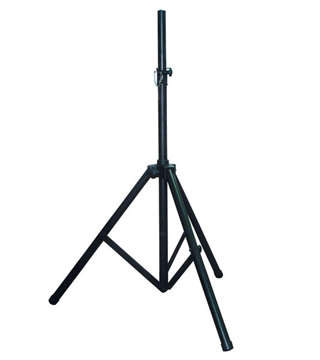

Evershine Enterprises Tripod StandEvershine Enterprises Tripod Stand
We manufacture Prop tripods these give better stability to the props & also increase the load carrying capabilities of the staging props.



Evershine Enterprises Tripod StandEvershine Enterprises Tripod StandEvershine Enterprises Fork Head
Fork head attachments, which are mounted on TOP of the props for holding large Formwork H beams in timber/ Aluminium / Steel, various sizes are available with us.

U Jack/Stirrup head

Our product range includes a wide range of U jacks or Stirrup heads. Adjustable Stirrup Head is widely used for supporting height adjustment between two joints. Stirrup head is made in 32, bright bar along with locking cut and u head 100 x 100 x 100 with 5 mm thick plate. These are perfect for the bottom of scaffold to provide an additional adjustment. Our offered range of scaffolds is highly demanded in the market for robust construction, superior performance and longer service life.


Evershine EnterPrieses Coupler FittingsEvershine Enterprises U Jack Stirrup Head
Adjustable Stirrup Head is widely used for supporting height adjustment between two joints. Stirrup head is made in 32, bright bar along with locking cut and u head 100 x 100 x 100 with 5 mm thick plate. These are perfect for the bottom of scaffold to provide an additional adjustment. Our offered range of scaffolds is highly demanded in the market for robust construction, superior performance and longer service life. We make these scaffolds available to the clients in customized designs and sizes.
Features

  • Made from premium quality of steel
  • Dimensionally accurate
  • Precise structure
  • Corrosion resistant surface
  • Excellent durability
Applications
  • Construction industry
  • Engineering Industry

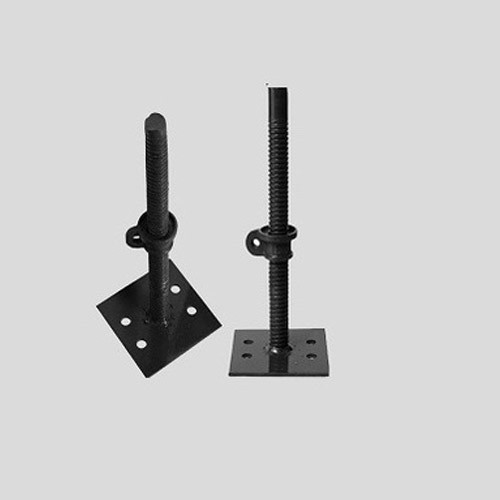

Evershine EnterPrieses Coupler FittingsEvershine EnterPrieses Coupler FittingsBase Jack/Adjustable Base Plate
Our product range includes a wide range of Adjustable Base Plate or Base Jacks. Adjustable Base Plate is widely used for height adjustment at bottom. Base jacks is made in 32, bright bar along with locking cut and Base plate 150 x 150 with 5 mm thick plate. These are perfect for the bottom of scaffold to provide an additional adjustment. Our offered range of scaffolds is highly demanded in the market for robust construction, superior performance and longer service life.
Features

  • Made from premium quality of steel
  • Dimensionally accurate
  • Precise structure
  • Corrosion resistant surface
  • Excellent durability
Features
  • Construction industry
  • Engineering Industry
